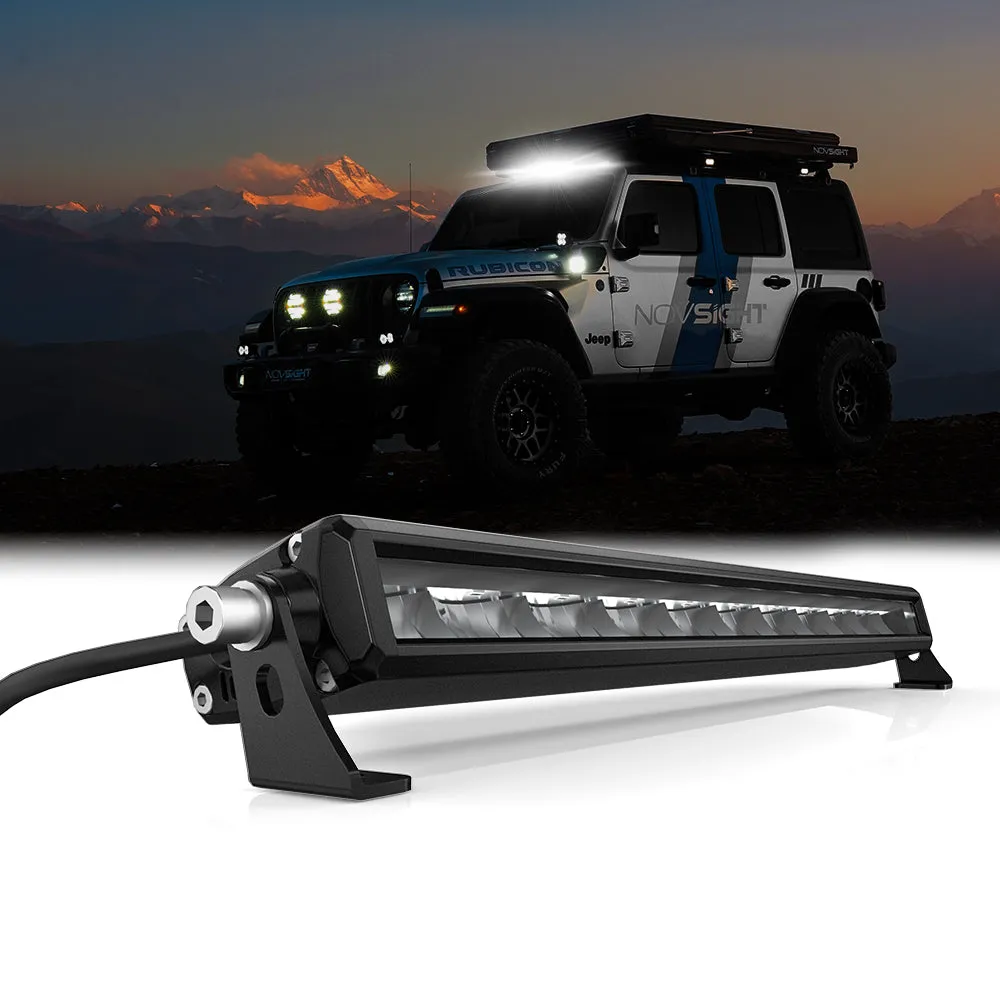

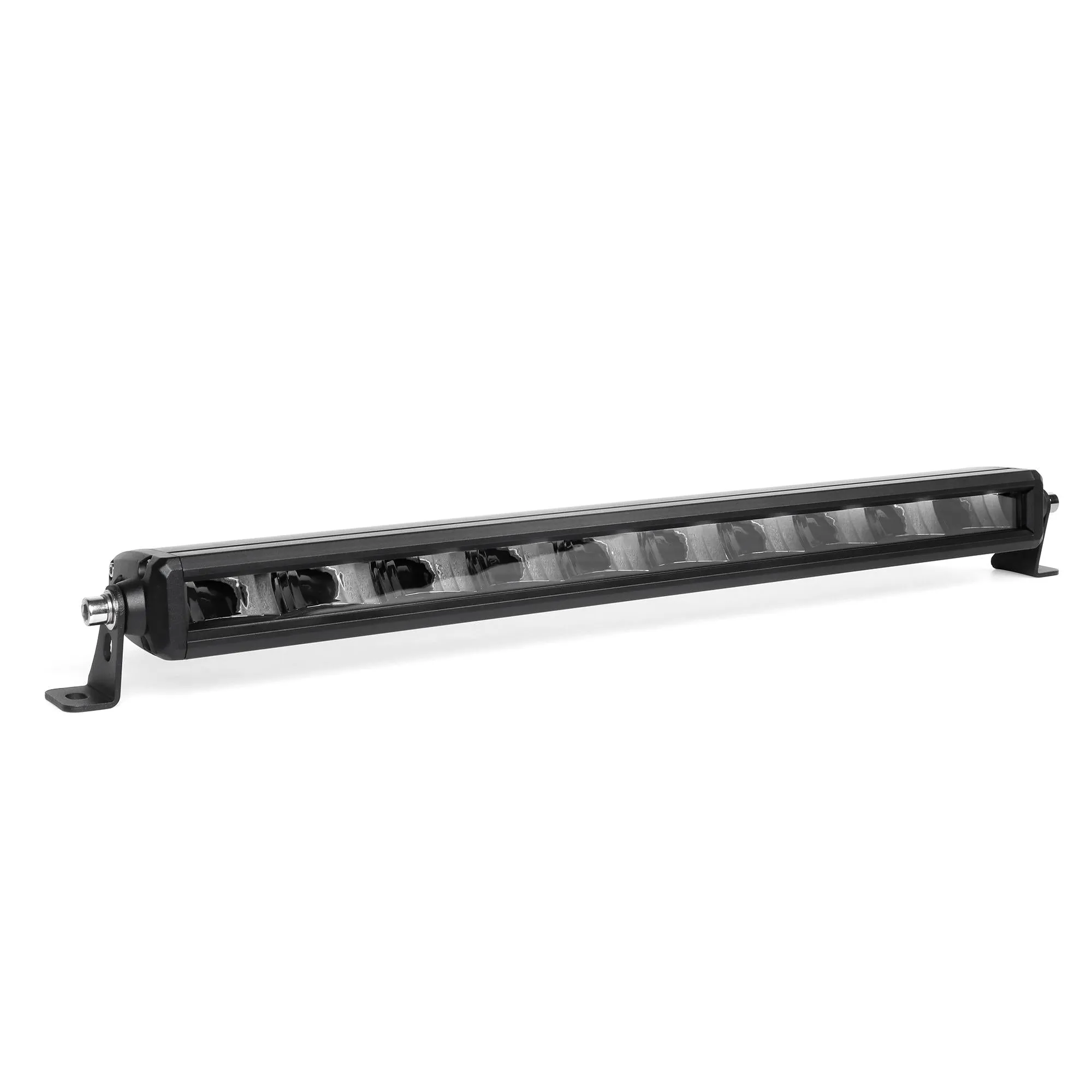

Super Bright and Stable Series/Single Beam Version-19.7 Inch LED Light Bar
Introduce:

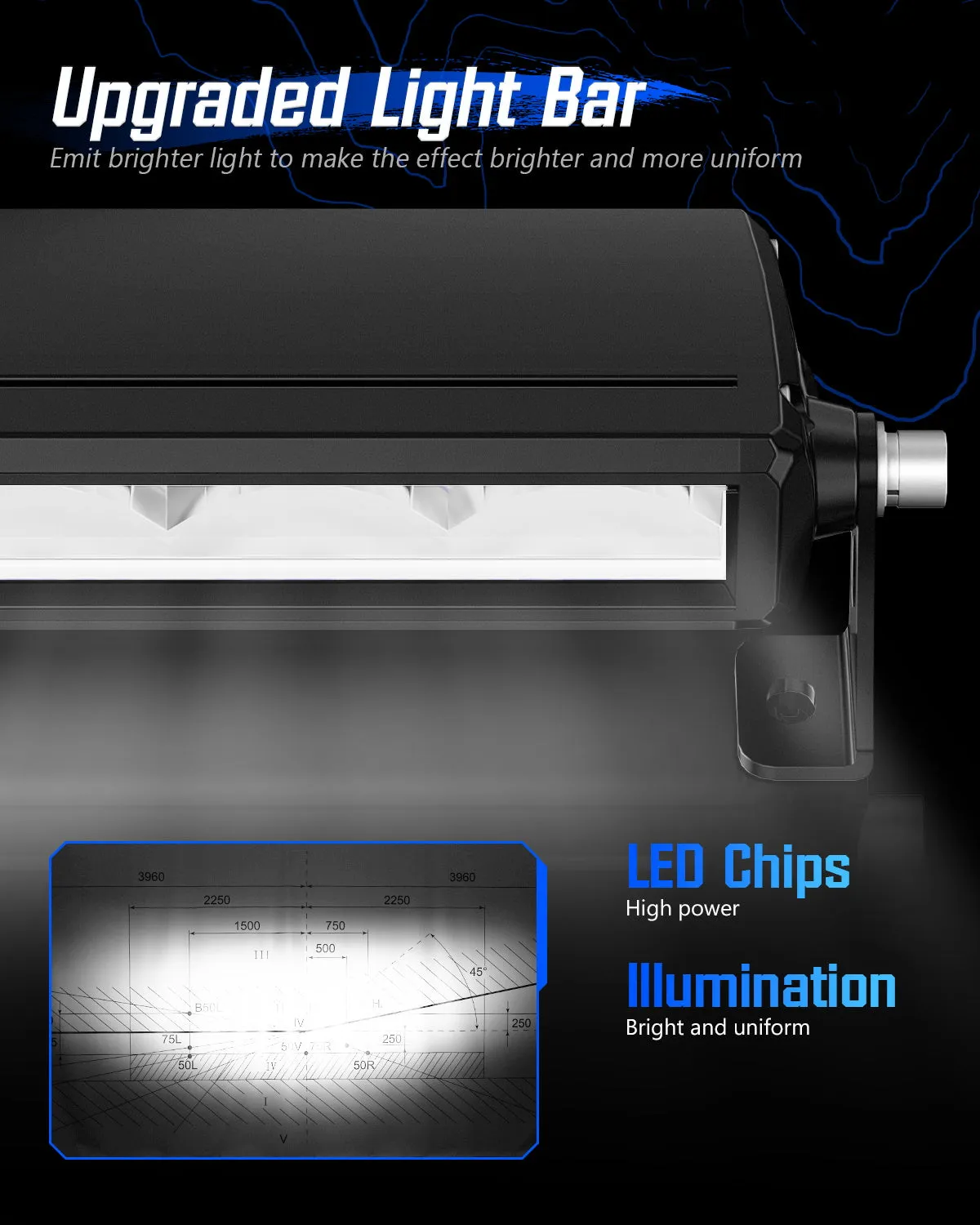

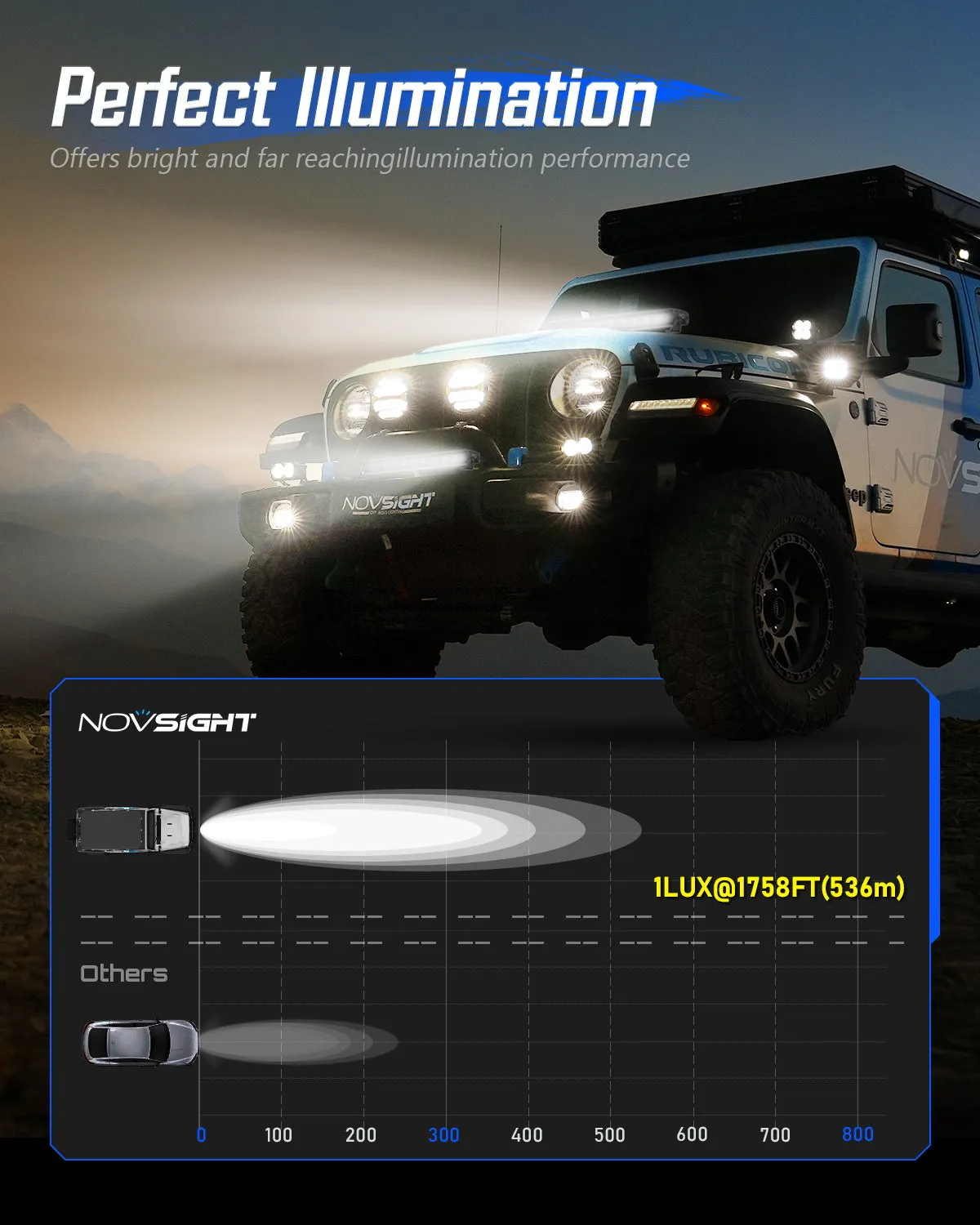

Novsight LED light bar uses advanced optical technology (semi-convex mirror), the light is effectively focused and projected to the far and near areas, providing a wider angle and a longer range of vision. IP68 waterproof level, reliable service in all kinds of bad rain and snow weather, is a must-have professional light bar for adventurers. A stable mounting bracket is included to make the lamp more steady and not easy to shake and damage.
Other available sizes: 8.8 Inch, 19.7 Inch, 30.5 Inch, 37.8 Inch, 48.7 Inch

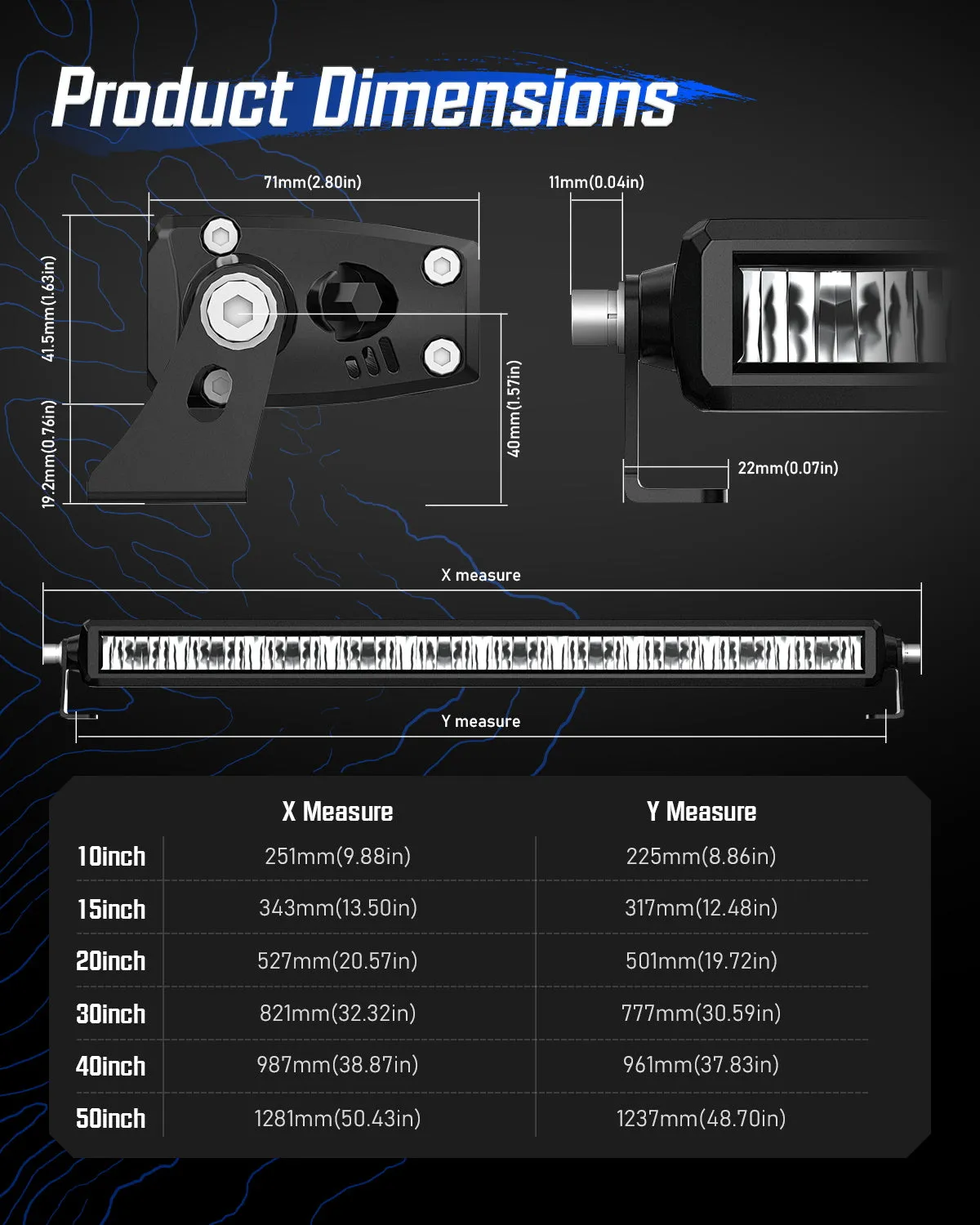

Comparison of different size LED bars:
|
Length |
Size (Inch) |
BAR Light source |
Output power |
|
8.8 Inch |
8.86*2.80*1.63" |
4pcs 15W HGL3 LEDs |
60W |
|
12.4 Inch |
12.48*2.80*1.63" |
6pcs 15W HGL3 LEDs |
90W |
|
19.7 Inch |
19.72*2.80*1.63" |
10pcs 15W HGL3 LEDs |
150W |
|
30.5 Inch |
30.59*2.80*1.63" |
16pcs 15W HGL3 LEDs |
240W |
|
37.8 Inch |
37.83*2.80*1.63" |
20pcs 15W HGL3 LEDs |
300W |
|
48.7 Inch |
48.70*2.80*1.63" |
26pcs 15W HGL3 LEDs |
390W |

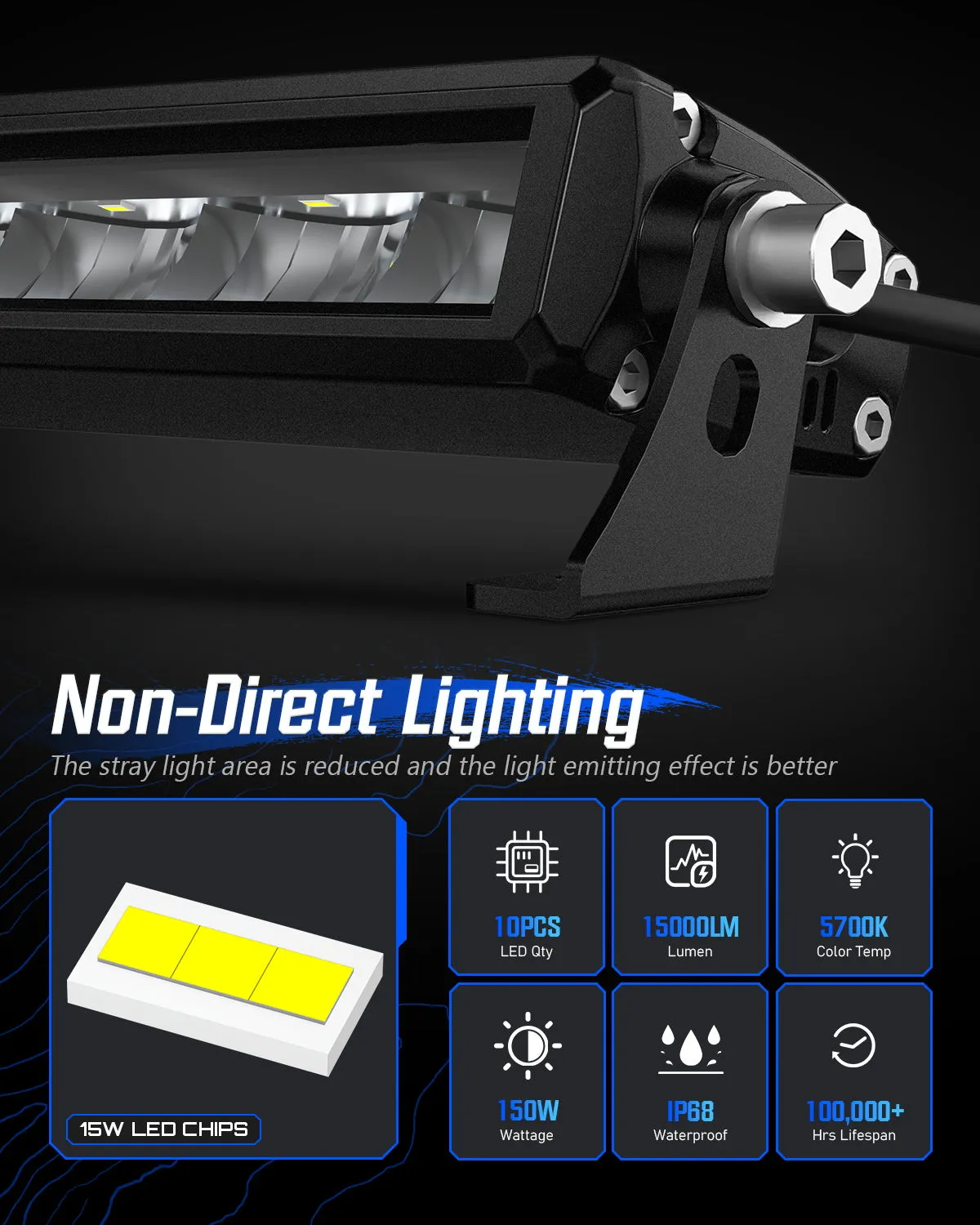

Specification:

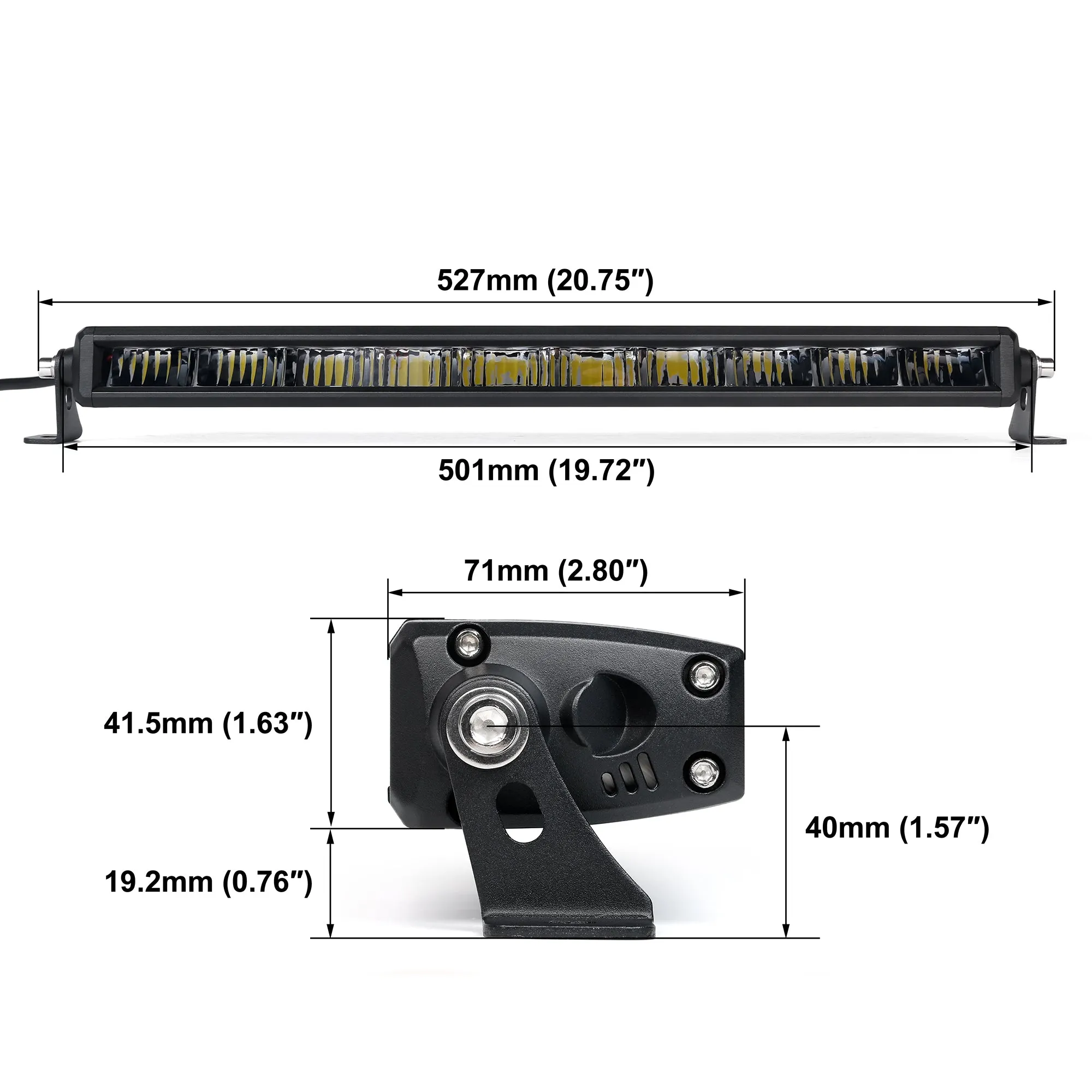

19.7-Inch LED Bar Dimensions: 19.72*2.80*1.63" (inches)
19.7-Inch LED BAR Light source: 10*15W HGL3 LED
● Output power: 150W
● Actual lumens: 6285 LM
● Light source type: monochrome/white light
● LED light source: composed of 15W HGL3 LED
● Beam Mode: Driving
● Voltage Compatibility (DC): 9-36V
● Color temperature: 6000K cool white
● Waterproof grade: IP68
● Service life: 50,000 hours
● Working temperature: -40~85 degrees Celsius

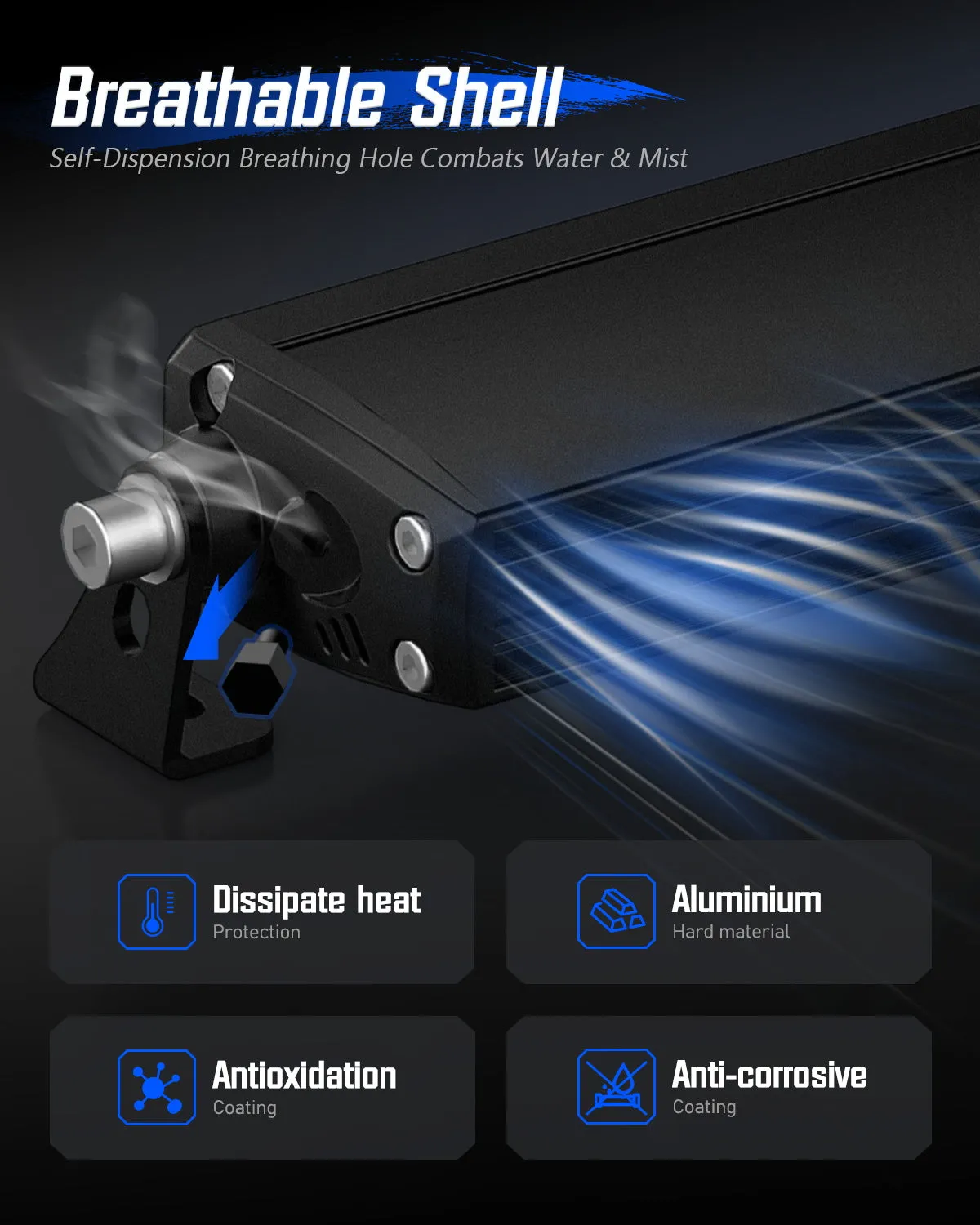

● Material: black die-casting aluminum alloy shell
● Mounting bracket: die-cast aluminum alloy
● Wired socket: DT socket
100% Satisfaction Guarantee
√ 45 days return for quality problems
√ 5 years worry-free warranty
√ Free shipping in the US
√ 24/7 hours professional customer support team one to one
Feature:

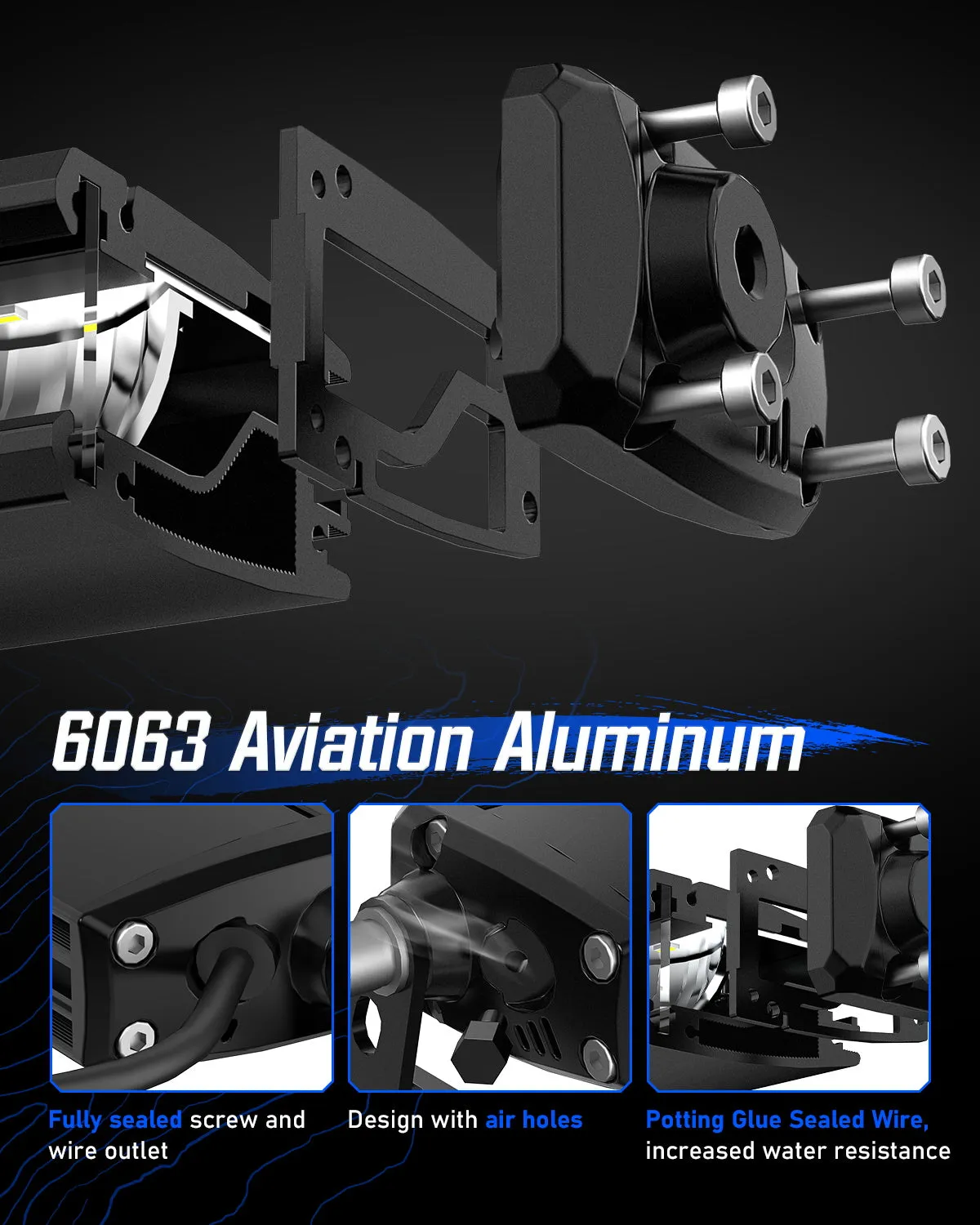

Black extruded aluminum profile, high light transmittance PC lens, 360° rotating metal side bracket;
IP68 waterproof and dustproof, sturdy and durable, can withstand any harsh environment, with a service life of about 50,000 hours
Widely applicable：
Off-road vehicles - ATVs, SUVs, trucks, forklifts, trains, boats;
Special vehicles - fire trucks, police cars, rescue vehicles, communication vehicles, military command vehicles, etc.;
Engineering vehicles - excavators, bulldozers, road rollers, bulldozers, cranes, mining vehicles, etc.

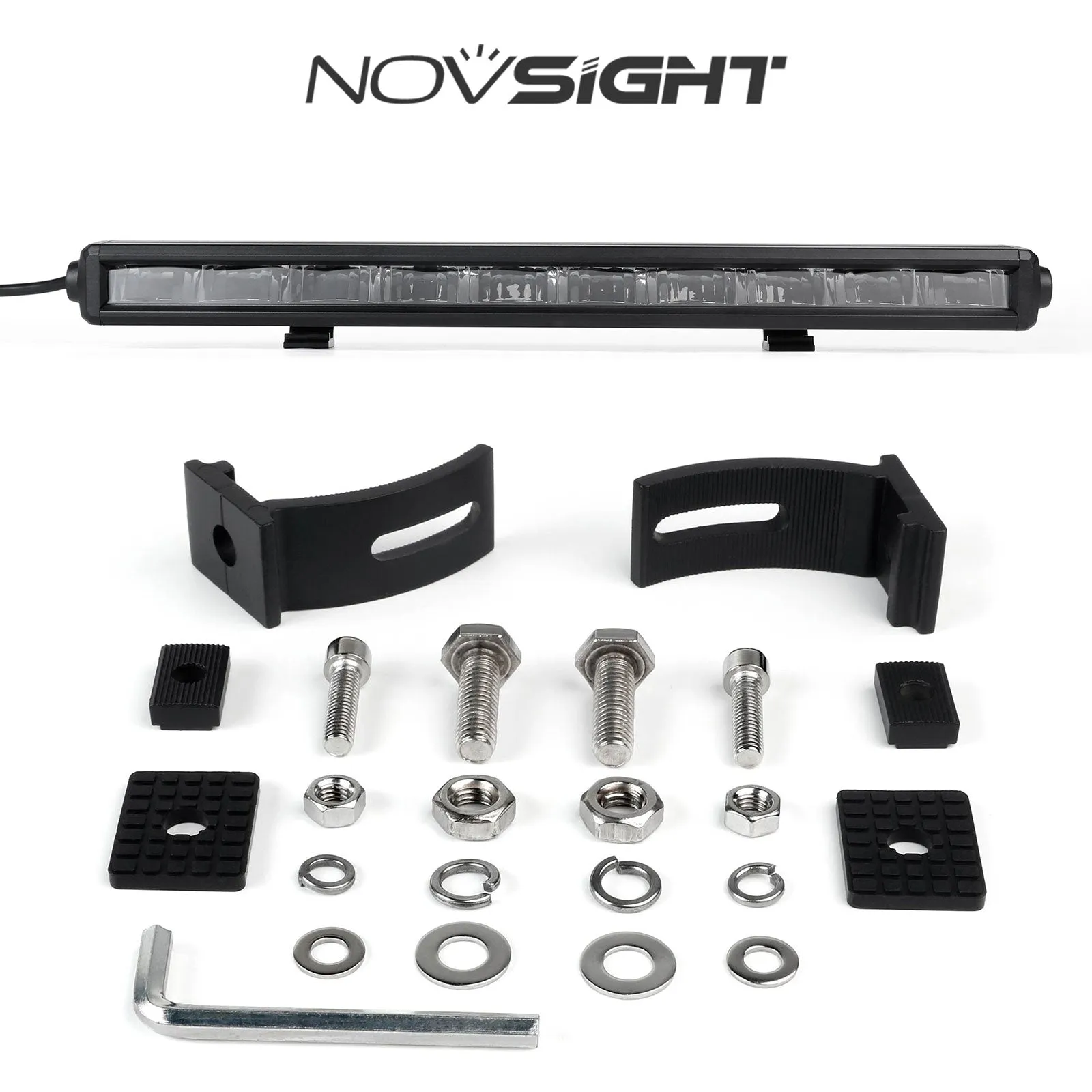

What will you get?

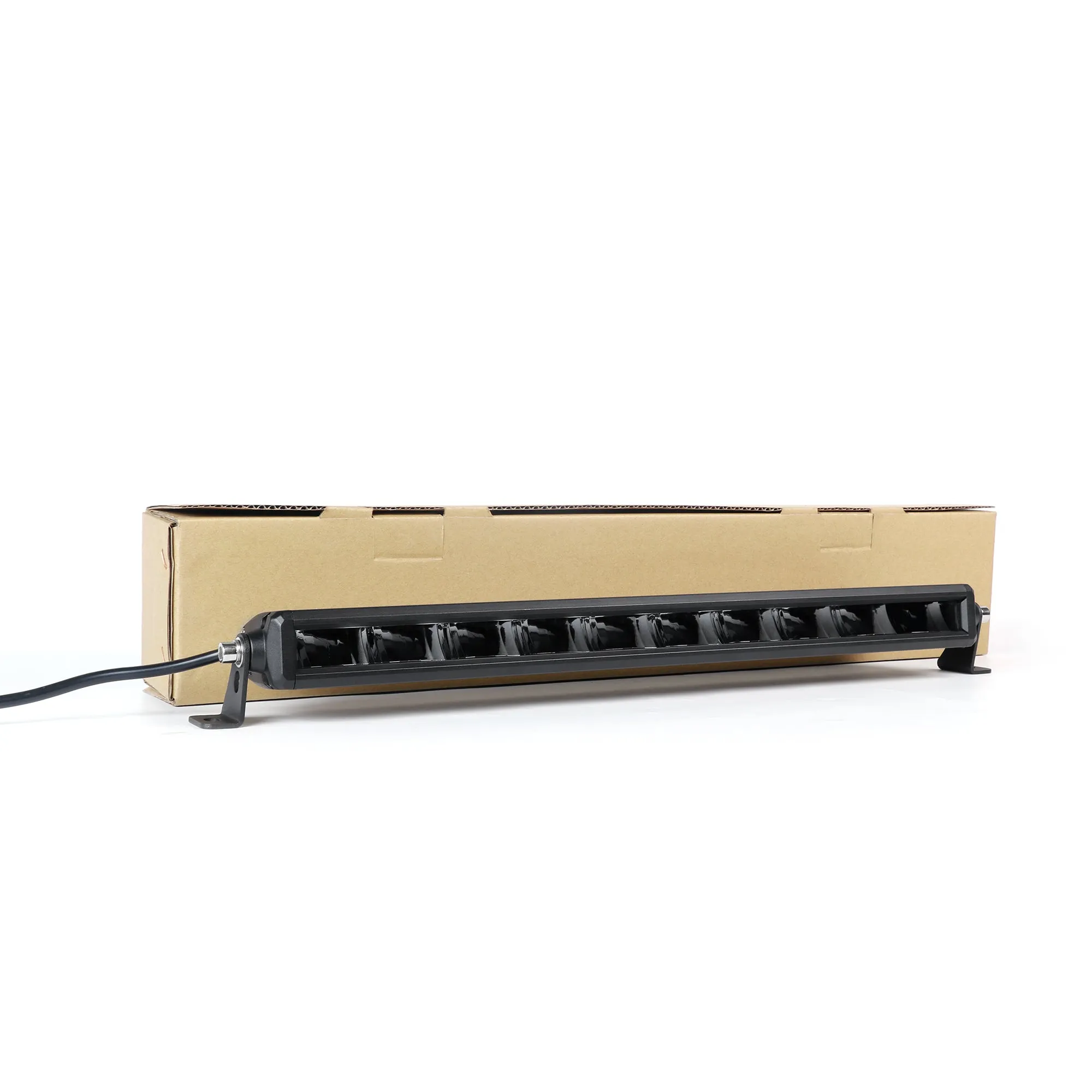

●LED light bar*1
●Wiring Harness*1 (118-inch 14AWG wire harness, double control switch)

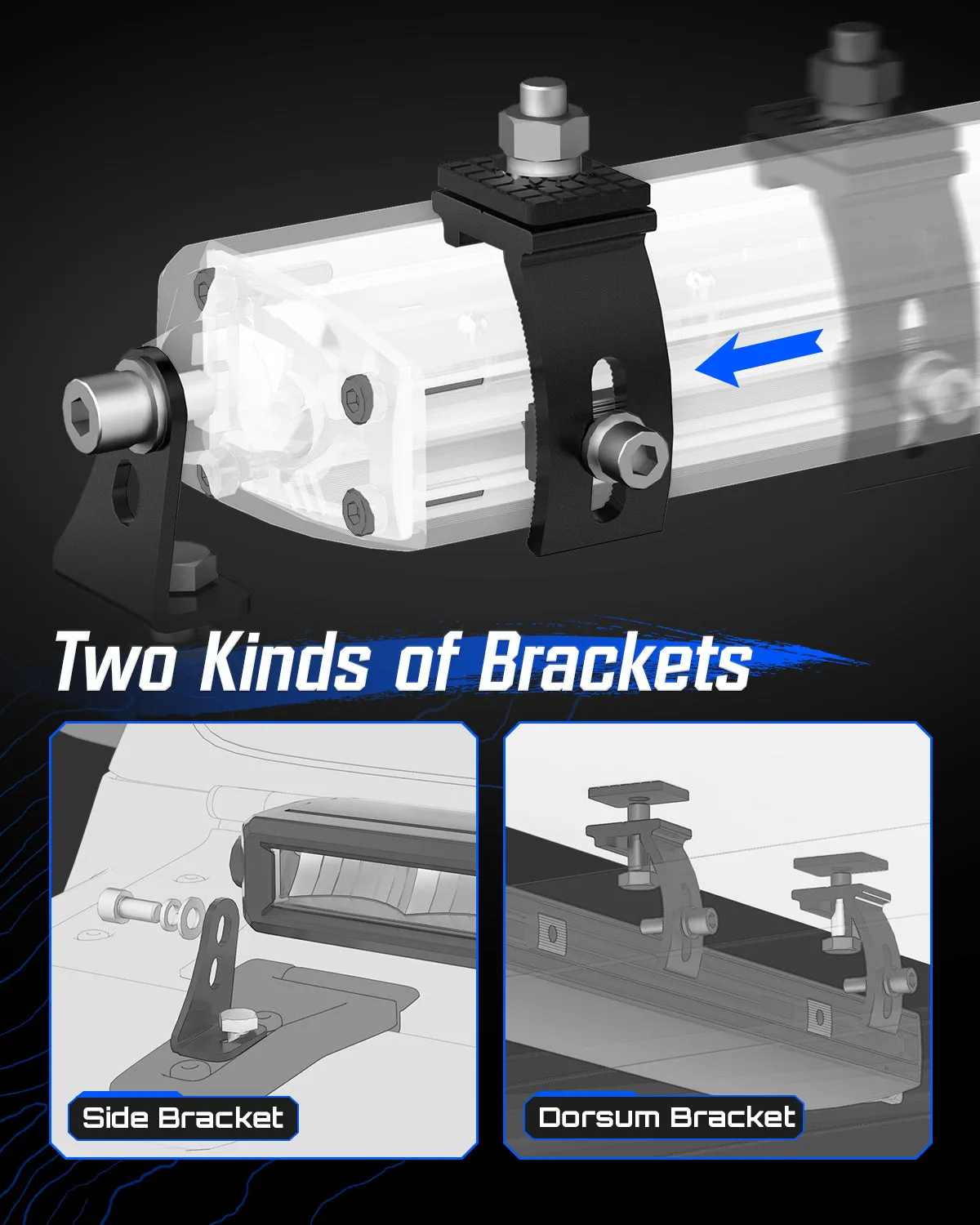

●Side bracket package (Hexagon socket screw * 2PCS; Flat washer*4PCS ;Spring pad*4PCS;Cylinder head hexagon socket screw*2PCS; Side bracket* 2PCS; Nut*2PCS; Hex wrench*1PC)
●Bottom bracket package (Hexagon socket screw*2PCS ;Nut*2PCS; Rear support; anti-slip mat*2PCS; Rear bracket* 2PCS; Anti-vibration rubber pad rubber*2PCS; Flat washer*2PCS; Spring washer*2PCS; Nut* 2PCS; Flat washer*2PCS; Spring washer*2PCS; Cylindrical head hexagon socket screw*2PCS; Allen wrench*1PC)

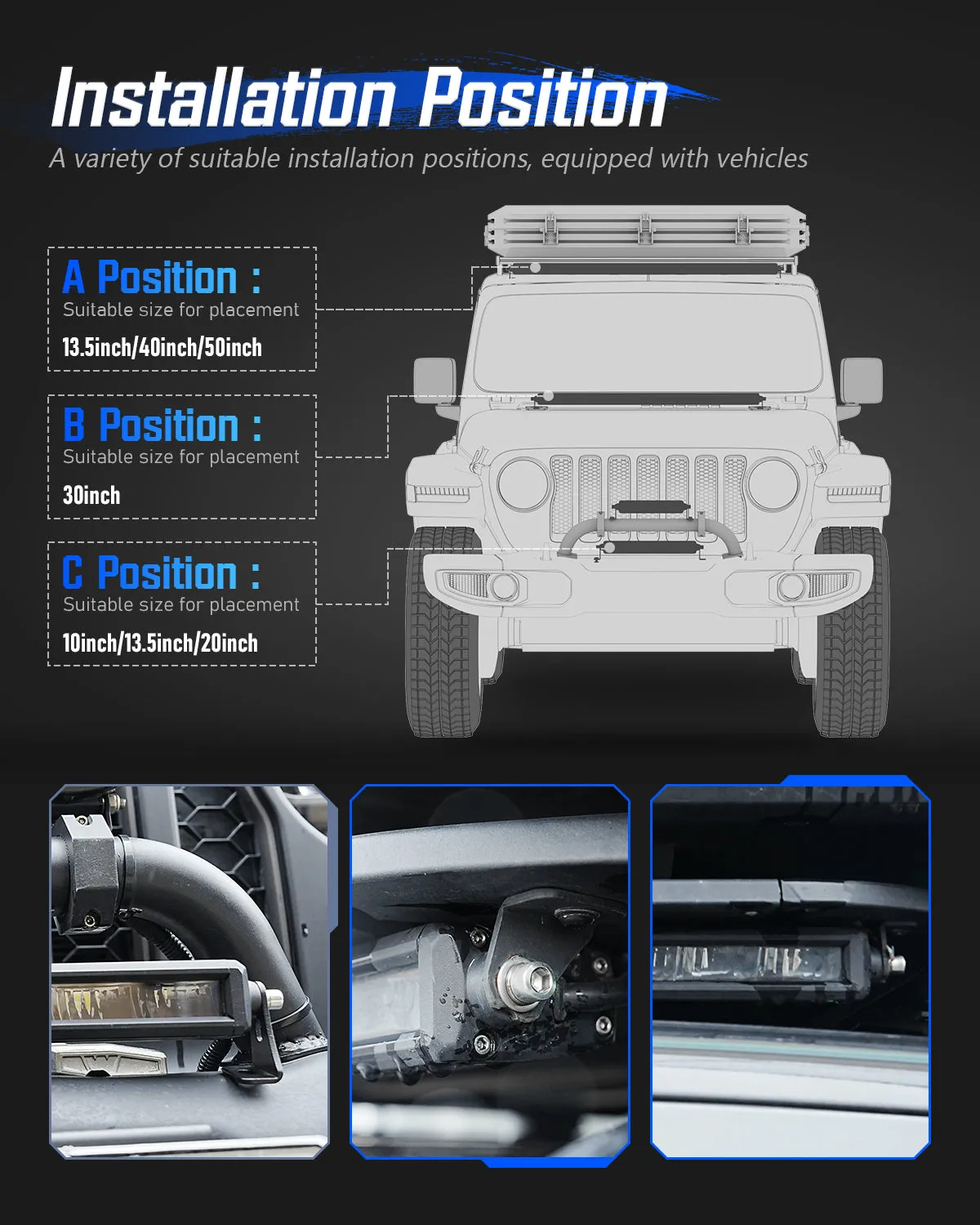

Installation Support
- Installation guides (Download online) :
