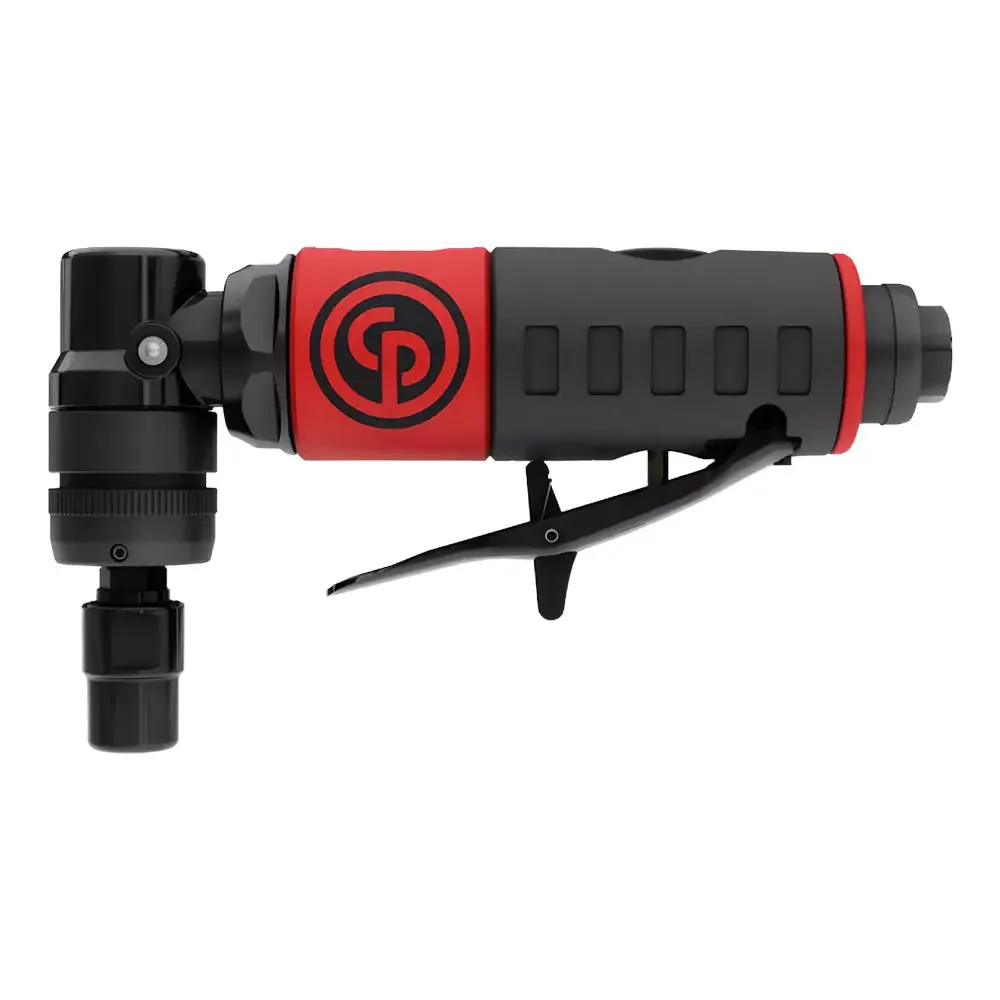

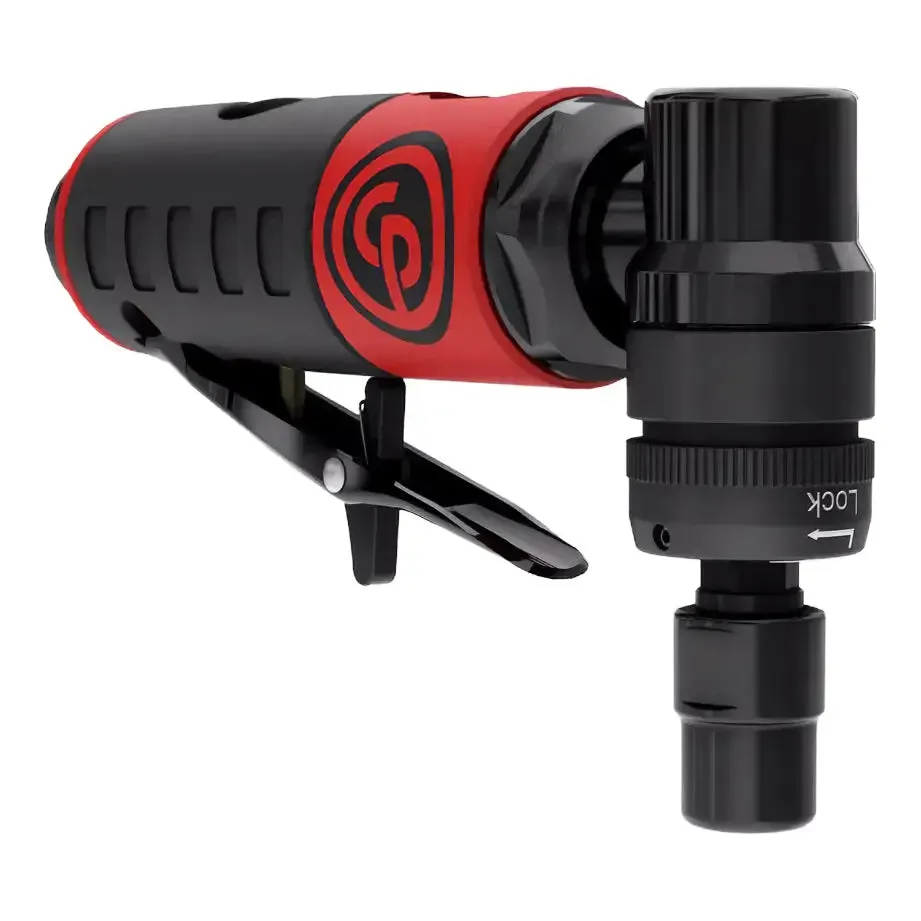

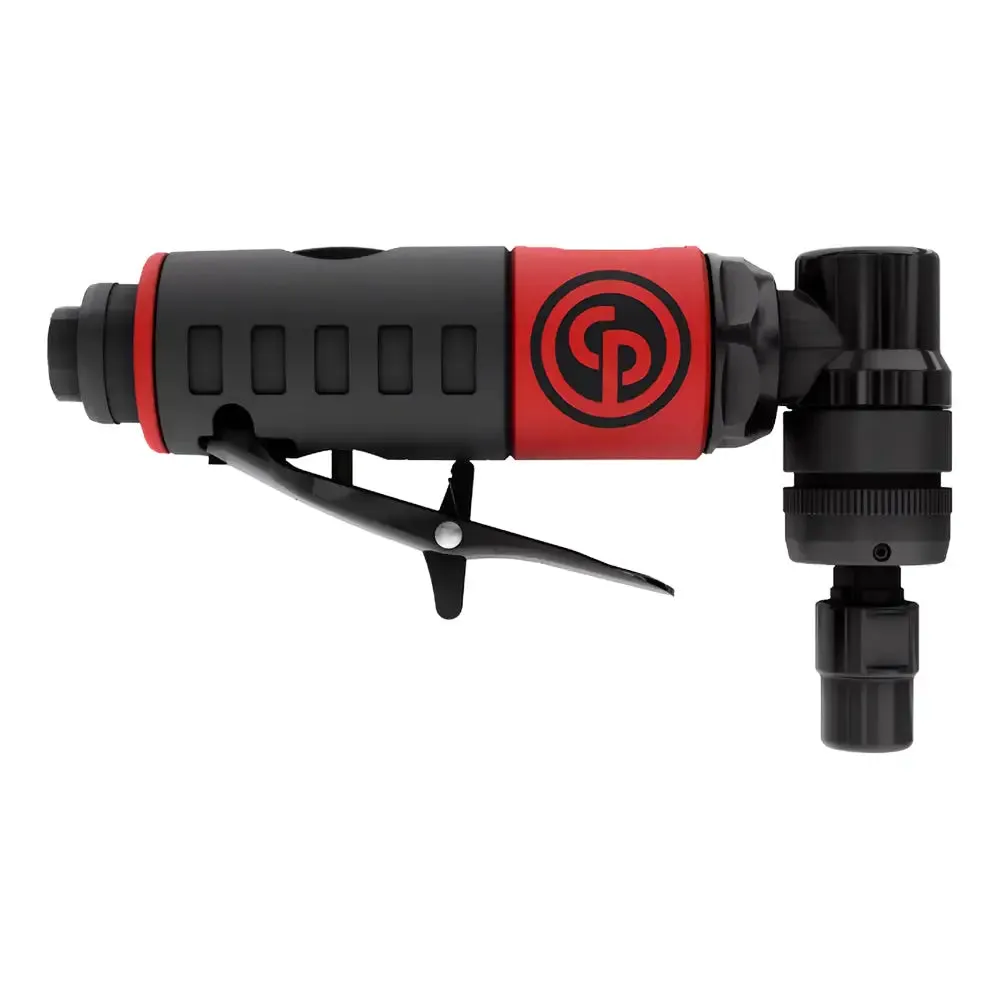

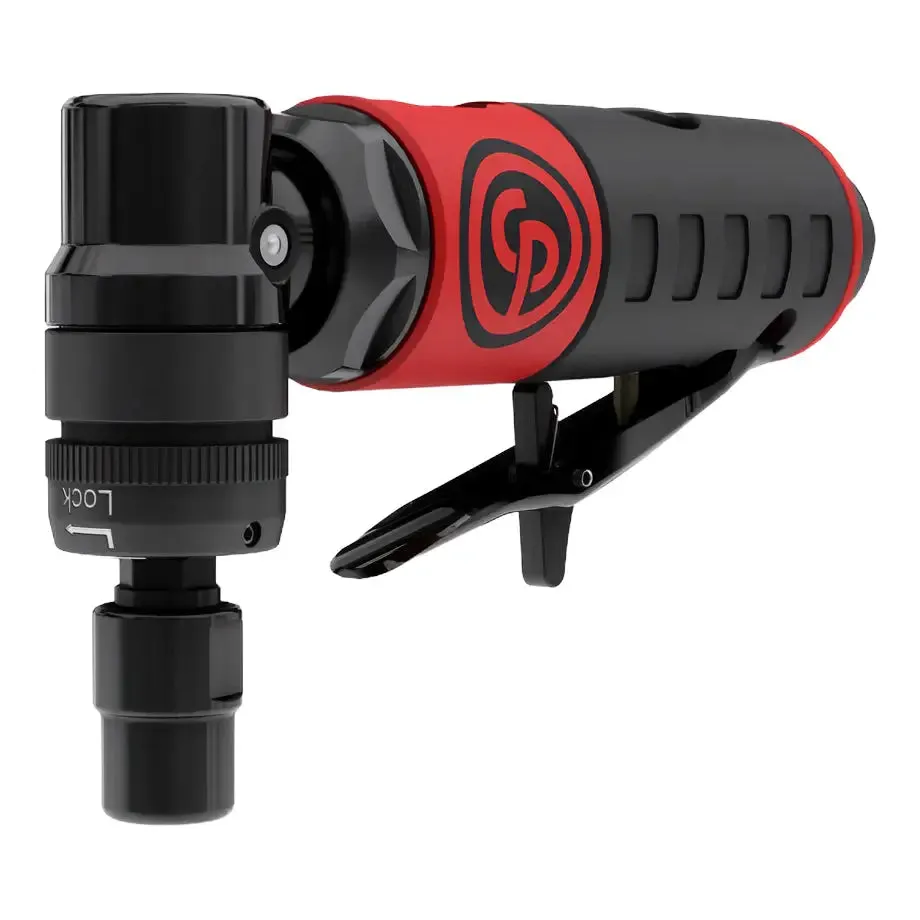

Introducing the Chicago Pneumatic CP74 Series 90 Deg. Angle Air Die-Grinder, is the ultimate tool for body shop and MRO applications. With its ergonomic design and low-profile throttle lever, this grinder provides unmatched comfort and control. The helical bevel gear design ensures smooth operation, while the spindle lock system enables fast and easy accessory changes. The CP74 series offers a wide range of heads for versatile use, and its composite housing minimizes heat transfer. Experience the power of 0.3 hp, 23,000 RPM, and 1/4" collet size. Perfect for cutting, deburring, grinding, and more.
Features:
- Ergonomic design for maximum comfort and control
- Low-profile throttle lever for increased user comfort
- Speed governed for enhanced productivity and efficiency
- Spindle lock allows fast and easy accessory changes
- Helical bevel gear design for smooth operation
- Composite housing minimizes heat transfer
Benefits:
- Easy carbide burr changes with spindle lock system
- Secure grip with TPR handle for slip-free operation
- Wide application coverage with multiple head options
- Longer tool life and durability due to less heat transfer
- Versatile use for cutting, deburring, grinding, and more
- Suitable for removing gaskets, prepping surfaces, tackling rust, and more
Specs:
Model: CP7406Part number: 8941074060
Actual air consumption: 2.1 cfm
Air inlet thread size: 1/4 in
Box dimensions: 9.1*3.9*2.5 in
Collet size: 1/4 in
Free speed: 23000 rpm
Free speed air consumption: 2 3/4 cfm
Length: 6.4 in
Min. hose size: 3/8 in
Net weight: 1.32 lb
Power: 0.34 hp
Rear exhaust: yes
Sound Power: 89.1 db(A)
Sound pressure: 78.1 db(A)
Vibration: 5.4 m/s²
Vibration ISO: ISO-28927-12
Vibration uncertainty (K): 1.27 m/s²
Ref No.
8941074060 (Part No.)
CP7405 (Standard)
CP7406 (90 Deg.)
CP7408 (120 Deg.)
CP7410 (9.8" Extended)
CP7411 (Straight)
CP7412 (13" Extended)
CP7411 (Straight)
CP7412 (13" Extended)

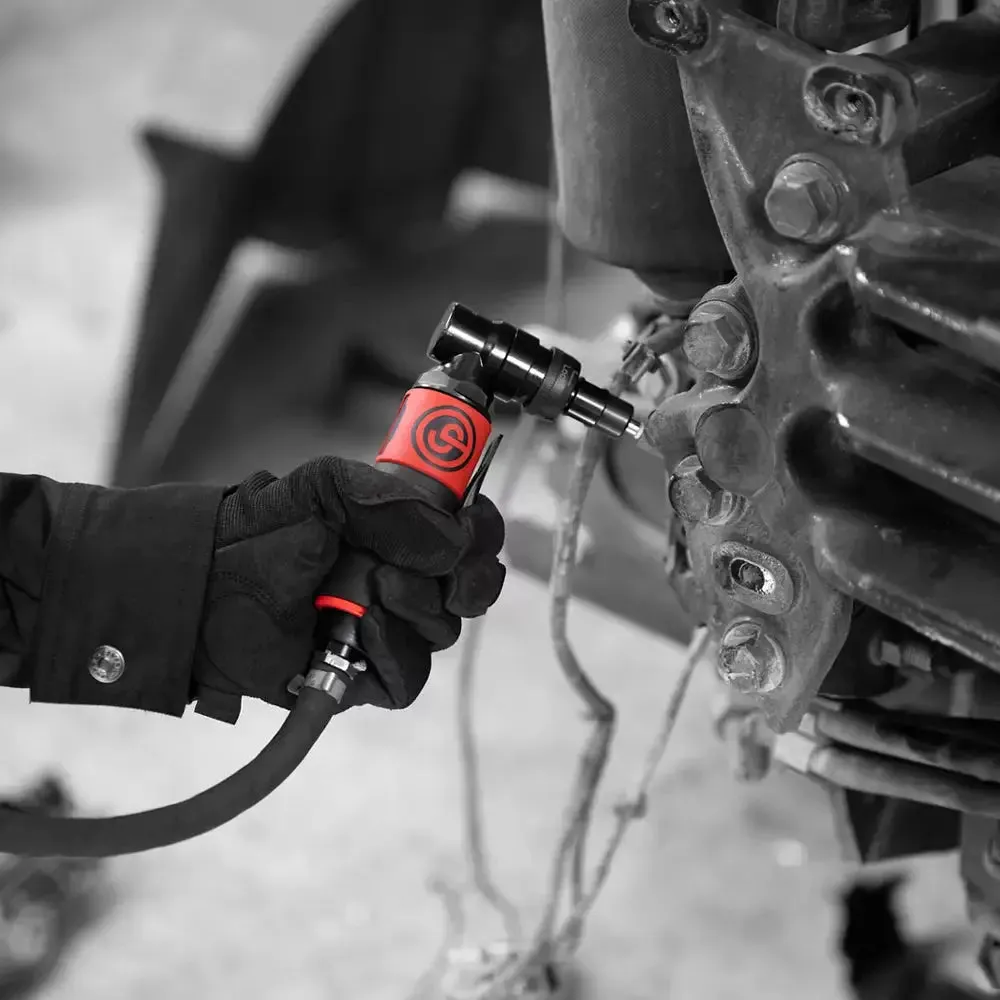

Application:
CuttingDeburring
Grinding
Sanding
Weld Preparation
General Application
Remove & Cleaning
- Gaskets
- Surface Prep
- Rust
- Steel
- Cast Iron
- Aluminum
